G652D 200m Outdoor Aerial ADSS Single Mode Cable

  • 1
  • 2
  • 3

Brand Name : UNIFIBER

Model Number : ADSS

Certification : ROHS UL CE

Place of Origin : CHINA

MOQ : 1KM

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000KM/day

Delivery Time : 5~7 Business days

Packaging Details : Wooden roller

Cable : ADSS

Fiber Counts : 2~144

Span : 50m 100m 200m 300m 500m or others

Strength Member : Kevlar Aramid Yanrs

Jacket : Single Jacket or Double Jacket

Jacket material : LSZH or PE

Contact Now

Outdoor aerial adss cable, span 200m, single mode 2~144 core, G652D, LSZH double Sheath Non-metal Stranded

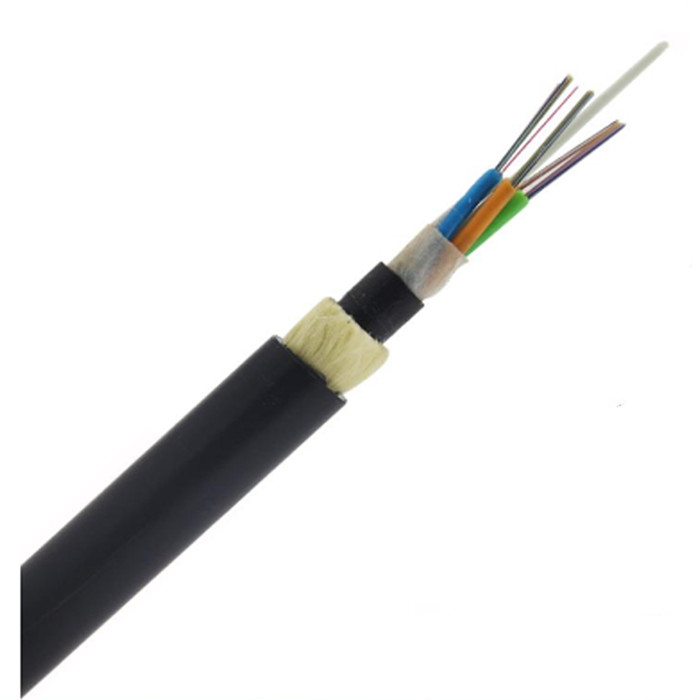

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Features:

Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

Loose tube design
Stable performance and compatibility with all common fiber types

Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
Sutable for Aerial self-support installation

Model No.
ADSS
Fiber count
2-144
Fiber type
G652D/G657A1/G657A2
Central Strangth member
FRP
Loose tube
PBT
Type of filling compound
Jelly
Water-blocking system
Kevlar yarn
Strength member
Kevlar yarn
Inner sheath
PE
Outer sheath
PE/AT
Applicantion
Overhead;Ariel for telecommunication

G652D 200m Outdoor Aerial ADSS Single Mode CableG652D 200m Outdoor Aerial ADSS Single Mode Cable
