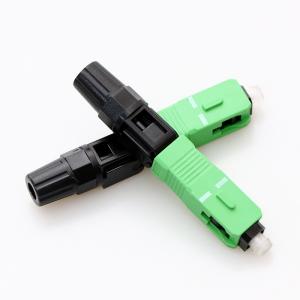

SC UPC SC APC FTTH Quick Assembly Connector 0.25dB Insertion Loss

Name: SC UPC SC APC FTTH Quick Assembly Connector 025dB Insertion Loss
Brand: UNIFIBER-OEM
Price: 1 USD

China SC UPC SC APC FTTH Quick Assembly Connector 0.25dB Insertion Loss factory

Brand Name : UNIFIBER-OEM

Model Number : FTTH Quick Assembly Fast Connector

Certification : ROHS

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Product : FTTH Quick Assembly Fast Connector

Connector : SC/APC or SC/UPC

Suiltable Cable : 2.0*3.0mm flat drop cable

Insertion Loss : ≤ 0.25dB

Application : FTTH

Custom Logo : Support

Contact Now

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .

Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

APPLICATIONS
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

FEATURES
Single fiber, SC/LC/ST/FC-based connector
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm

Specification

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

SC UPC SC APC FTTH Quick Assembly Connector 0.25dB Insertion Loss
