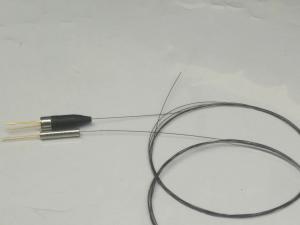

Mini Tap PD Fiber Optical Switch 250um Bare C/L Band WDM Channel Monitoring

  • 1
  • 2
  • 3

Brand Name : UNIFIBER or OEM

Model Number : Tap-PD Monitor

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3-5days

Packaging Details : Blister case

Product : C/L band Mini Tap-PD Monitor

Tap Ratio : 1%,2%,5%

Connector : LC/Sc/FC/St

Pigtail : 250um Bare Fiber or 900um Tight Buffer

Application : Switch/Protection

Name : Fiber Optical Switch

Contact Now

The tap PD released by Unifiber is a device that uses the photoelectric effect to monitor light intensity. When light is input to the detector, a current of corresponding intensity is drawn from the product PIN pin. The Tap PD integrates a spectroscopic coupler and a photodiode.

Features
- Low Insertion Loss & high isolation
- Customized tap ratio available
- Integrated devices, compact size
- Telcordia compliant
- RoHS compliant
Applications
- WDM channel monitoring
- Gain monitoring for amplifiers
- Optical network switch/protection
- monitoring
Specifications
Parameter Specification Unit
Operating Wavelength C/L band
Tap Ratio 1% 2% 5%
Maximum Input Power 25 22 18 dBm
Responsivity 7~15 14~26 40~60 mA/W
Insertion Loss Max 0.5 0.6 0.7 dB
Wavelength Dependent Loss Max 0.3 0.3 0.3 dB
Temperature Dependent Loss Max 0.3 0.3 0.3 dB
Return Loss Min 45 45 45 dB
Polarization Dependent Loss Max 0.1 0.1 0.1 dB
Dark Current (at 25°C) Max 1 1 1 nA
Reverse Voltage Max 20 (Typ 5) V
Operating Temperature Range 0~+70 °C
Storage Temperature Range -40~+85 °C
Package Dimension (L* ) 17*3.2 mm
TPD Standard/Mini Size Tap Ratio Fiber Type Connector Type
M: Mini size 01: 1% 1: 250μm bare fiber 0: Without connector
02: 2% 2: 900μm tight buffer fiber 1: FC/PC 2: FC/UPC
3: FC/APC
05: 5% 4: SC/PC 5: SC/UPC
6: SC/APC
7: ST 8: LC 9: MU
X: Customized
