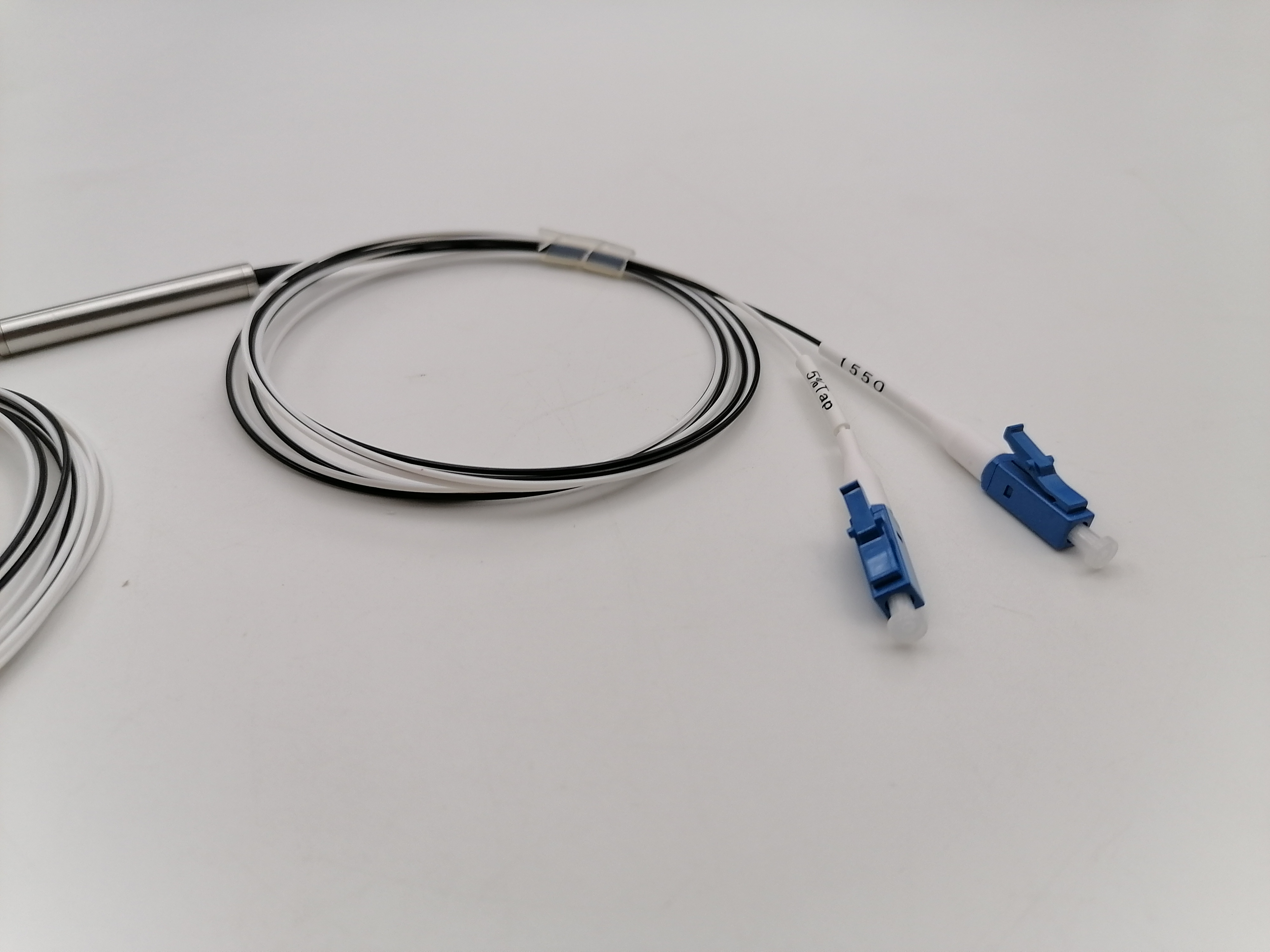

R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : C Band FWDM Filter With 5% Tap Splitter

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Blister Case

Product : C Band FWDM Filter With 5% Tap Splitter

Transmittion Wavelength : 1550nm(1530-1565nm)

Reflection Wavelength : 1610nm

Tap coupler : 2% or 5%

Fiber Type : SMF-28e with 900um Loose Tube

Connector : LC/UPC

Contact Now

T1550(1530-1565nm) R1310+R1610+Tap2% or 5%,5.5x38mm,900um,1m, LC/UPC utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid

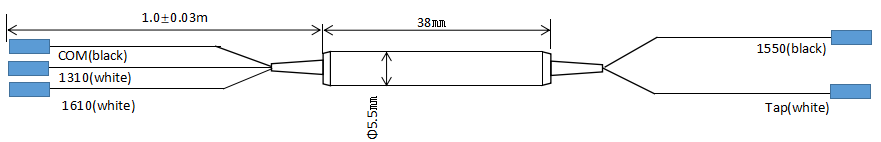

Number ring: Com,1310,1610,1550,2%Tap or 5% Tap

Parameters Specifications Unit
Pass Band 1530~1565 nm
Reflection Band 1260~1360,1580~1620 nm
Insertion Loss 1310 ≤1.3 dB
1610 ≤1.3 dB
1550+98% 1550+95% ≤1.9 ≤2.0 dB
2% 5% ≤19.25 ≤14.8 dB
Isolation Pass Channel ≥30 dB
Reflection Channel ≥15 dB
Directivity ≥50 dB
Return Loss ≥45 dB
Polarization Dependent Loss ≤0.2 dB
Polarization Mode Dispersion ≤0.2 ps
Fiber Length 1.0±0.03 m
Fiber Type SMF-28e with 900um Loose Tube /
Connector LC/UPC /
Operating Temperature -10 ~ +70 ℃
Storage Temperature -40 ~+ 85 ℃
Package size Φ5.5*38 /

R1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap HybridR1310 R1610nm LC UPC FWDM Filter 1530-1565nm With 5% Tap Hybrid
