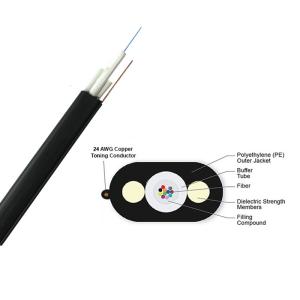

Toneable Dielectric Aerial Fiber Drop Cable FTTP With 24AWG Copper Wire

Name: Toneable Dielectric Aerial Fiber Drop Cable FTTP With 24AWG Copper Wire
Brand: Unifiber or OEM
Price: 1 USD

China Toneable Dielectric Aerial Fiber Drop Cable FTTP With 24AWG Copper Wire factory

Brand Name : Unifiber or OEM

Model Number : Toneable Mini LT Flat Drop Cable

Certification : ROHS

Place of Origin : China

MOQ : 10km

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000Km/day

Delivery Time : 3~5 days

Packaging Details : Wooden rool

Product : Toneable Mini LT Flat Drop Cable

Strength member : Two Parallel FRP and fiber reinforce glass yarn

Installation tensile : 1200N

Fiber Count : 2-24 cores

Cable sheath : Black Polyethylene (PE)

Application : FTTP

Contact Now

Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds

Features:
Universal design
Maximum bandwidth
Excellent crush resistance
Reduces cable prep and installation time
Easy location after installation

Applications:
Drop cables
Broadband network
Local loop
FTTX
Aerial or direct bury

Specifications:

Fiber Count	Conductor Size (AWG)	Width (mm)	Height (mm)	Weight (km/kg)
1~12	16	10.9	4	70
1~12	12	12	4.5

Characteristics:

Characteristics		Specifications
Tensile Load	Short Term	440N
Tensile Load	Long Term	132N
Crush Resistance		2,200N/mm
Axis Bending Radius	Loaded	30mm
Axis Bending Radius	Unloaded	50mm
Temperature Range	Installation	-10℃ ~ + 60℃
Temperature Range	Operation	-40℃ ~ + 70℃

Toneable Dielectric Aerial Fiber Drop Cable FTTP With 24AWG Copper Wire
