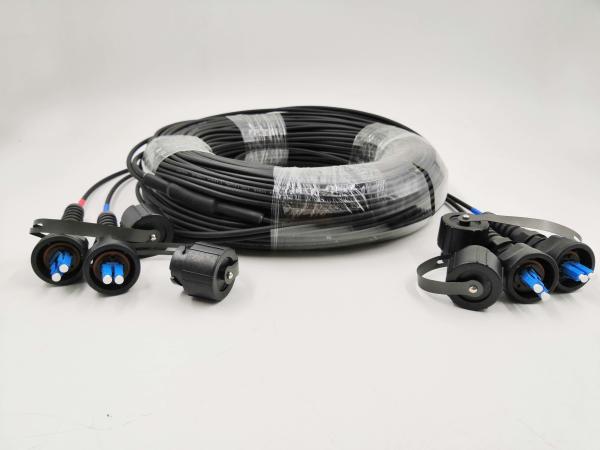

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly

  • 1
  • 2
  • 3

Brand Name : Unifiber or OEM

Model Number : ODVA -LC Duplex FTTA CPRI Patch Cord

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : FTTA CPRI Patch Cord ODVA -LC Duplex

Connector : ODVA -LC Duplex

Cable Diameter : 5.0/7.0mm

Fiber type : Single mode G657A1

Jacket material : LSZH

Application : FTTA

Contact Now

FTTA outdoor fiber patch cord CPRI available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI FTTA cable is can armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quickdeployment, military, mining, oil field, TV broadcasting, and communication emergency repair.Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core Easy Operation, reliable and cost-effective.

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly
FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly
FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly
Item
Parameter
Connector Type
ODVA/LC ,DLC
SMFiber Type
SM 1310/1550 or MM 850/1300
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Interchangeability
≤0.2dB
Durability
≤0.2dB

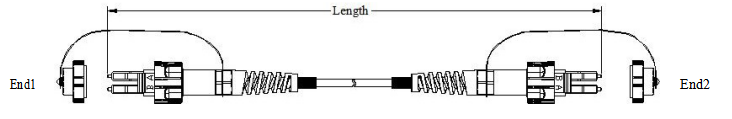

Fiber Length
1m ,2m,3m ...any length for optional
Length and tolerance
+10cm
Operating Temperature
-45~85℃
Storage Temperature
-45~85℃

FTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable AssemblyFTTA Outdoor CPRI Patch Cord IP67 Waterproof , RRU 7.0mm Armored Fiber Cable Assembly
