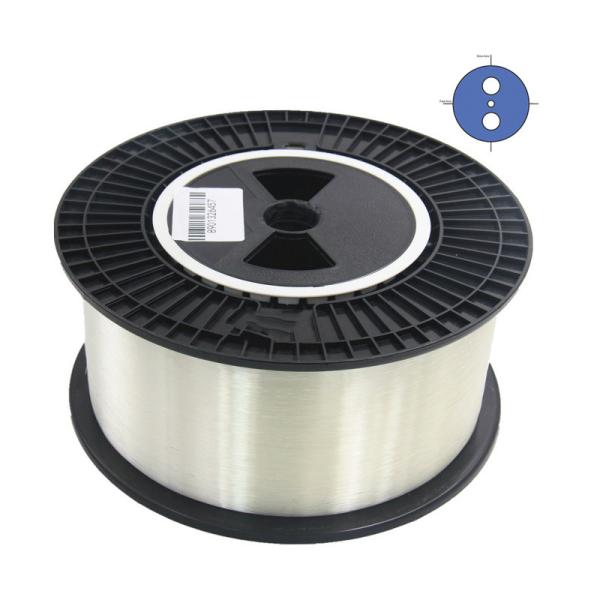

PMF Polarization Maintaining Fiber Optic Cable Singlemode 250um

Brand Name : Unifiber or OEM

Model Number : PMF Polarization Maintaining Fiber

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500km/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : PMF Polarization Maintaining Fiber Optic Cable Singlemode 250um Bare PM Fiber

Wavelength : 980nm 1310nm 1490nm 1550nm

Coating Type : Dual-layer, UV-acrylate

Diameter : 250um

Package : 1KM/Reel

Alignment : Slow Axis or Fast Axis

Contact Now

PMF Polarization Maintaining Fiber Optic Cable Singlemode 250um

Polarization maintaining fibre (PMF) is specially designed for fibre optic gyroscopes (FOGs) and polarization-sensitive components applications. This kind of fibre exhibits extremely low attenuation and excellent birefringence characteristics, and uses in a variety of demanding applications. PMF is manufactured through the high precision Plasma Chemical Vapor Deposition (PCVD) process. This process produces preforms with precise refractive index profiles, material uniformity and dimensional tolerances, therefore, makes fibres with excellent birefringence, low attenuation and extremely tight tolerances. With dual-layer, UV-cured Acrylate coating, Polarization maintaining fibre has high environmental stability performance over the temperature range of -45 ℃ to +85 ℃ (-49 ℉ to +185 ℉ ).

PMF Polarization Maintaining Fiber Optic Cable Singlemode 250um

Fibre Type PM 980
125-12/250_C		 PM 1310
125-13/250_C		 PM 14xx
125-13/250_C		 PM 1550
125-13/250_C
Part No. PM1015-A+ PM1016-C+ PM1018-A+ PM1017-C+
Optical Properties
Operating Wavelength (nm) 980 1310 1400 - 1490 1550
Cut-o Wavelength (nm) 800 - 970 1100 - 1290 1200 - 1380 1290 - 1520
Mode Field Diameter (μm) 6.5±1.0 9.0±1.0 9.8±1.0 10.5±1.0
Attenuation (dB/km) ≤ 2.5 ≤ 0.5 ≤ 0.5 ≤ 0.5
Beat Length (mm) 3.0 - 5.0 3.0 - 6.0 4.0 - 7.5 4.5 - 8.0
Typical Cross Talk at 4m (dB) ≤-30 ≤-30 ≤-30 ≤-30
Cross Talk at 1000m (dB) ≤-25 ≤-25 ≤-25 ≤-25
Geometrical Properties
Cladding Diameter (μm) 124.5 ± 1.0 124.5 ± 1.0 124.5 ± 1.0 124.5 ± 1.0
Coating Diameter (μm) 245.0 ± 7.0 245.0 ± 7.0 245.0 ± 7.0 245.0 ± 7.0
Cladding Non-Circularity (%) ≤1.0 ≤1.0 ≤1.0 ≤1.0
Core Concentricity Error (μm) ≤0.5 ≤0.5 ≤0.5 ≤0.5
Coating Type Dual-layer, UV-acrylate Dual-layer, UV-acrylate Dual-layer, UV-acrylate Dual-layer, UV-acrylate
Mechanical Properties
Operating Temperature (℃) -45 to +85 -45 to +85 -45 to +85 -45 to +85
Proof Test (100 kpsi) 100 100 100

100
