2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode

Name: 2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode
Brand: Unifiber or OEM
Price: 1 USD

China 2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode factory

Brand Name : Unifiber or OEM

Model Number : 2x2 bypass optical switch

Certification : ROHS

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs

Delivery Time : 5~8days

Packaging Details : Blister Case

Product : Mechanical Optical Switch

Port : 1x2 or 2x2

Control Type : Latching or Non-Latching

Voltage : 3V or 5V

Wavelength : 1310/1550nm

Connector : SC/UPC

Contact Now

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode

Description of 1x2 2x2 Bypass Mechanical Optical Switch Non-latching 3V/5V

2x2B mechanical Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its working with Singlemode wavelength 1260~1650nm or Multimode 850/1310nm. This is using a opto-mechanical proprietary configuration and activated via an electrical control signal. The 2x2Bypas mechanical Fiber Optical Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2B mechanical Fiber Optical Switch are true switching solution for optical networking applications.

Features

Fast Switching Time

Low Insertion Loss
High Stability & Reliability
Wide Wavelength Range
Low Crosstalk
Epoxy-free on Optical Path
Compact Size
Latching or Non-latching type

Application

R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)

Specification

Parameter	Unit	2x2B Single Mode Mechanical Optical Fiber Switch
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating Wavelength	nm	850/1300	1310/1550
Insertion Loss	dB	<1.2	<1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
Polarization Dependent Loss	dB	0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	V	3.0 or 5.0
Lifetime	times	≥107
Switch Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Dimension	mm	(L)27.0×(W)12.0×(H)8.2

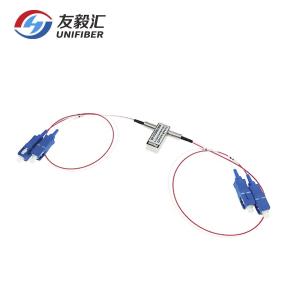

Picture of 2x2 SM 1310/1550nm Bypass Mechanical Fiber Opitc Switch

2x2B Bypass Mechanical Fiber Optical Switch 1310nm 1550nm Single Mode
